Overview
Overview
FAB-HIND INDUSTRIES, established in the year 1991 is an ISO 9001:2015 certified company involved in the manufacturing, supplying and installation of Asphalt Batch Mix Plant, Concrete batching plants , Drum mix plant , Waste tyre paralysis plants etc. (formerly it was named as FAN-INIDA INDUSTRIES)
We have been an established company with three manufacturing units and have an excellent track record of customer satisfaction through our perseverance work and efforts in maintaining the quality of product. We believe in keeping our customers happy by providing them the product they demand at a very competitive price. We strives to achieve best quality of the product and providing best services to our customers.

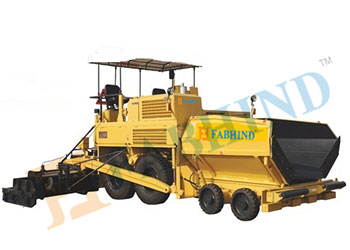

FAB 550 model of finisher paver holds an extension of screed is hydraulic to a width of 4.5 meters and half meters on each side is of Bolton type, which can be removed easily by loosening of bolts.
We have made this model offering high torque and low speed. The drives used in the manufacturing are fully hydrostatic operations and lubrication process to boost the performance of the machine. Selection of the paver variant would be as per the standard for the road construction requirement to acquire the best-in-class results.
Description
Description
A value driven paver
- Fab 550 wheeled paver, well established in Indian market with highest market share offers value for money to the customer.
- It is highly productive, user friendly and capable of paving up to 5.50 meters.
- Four wheel rear drive which is a unique feature of FAB’s paver offering high traction, good ground stability, making it an ideal machine for demanding job sites.
Operator friendly
- Robust technology & spontaneous design for ease to operate
- Swinging operator console
- Controlled vibration adjustment
- Visibility surrounding all during driving
- Ease of drive
Heavy-Duty screed
- Good pre compaction
- Optional gas heating
- Automatic sensing and cutoff for heating
Goal richer
- Material flow system ensures consistent mix delivery
- Essential to reaching quality targets
- Paving accuracy helps reach the exact specifications
Features
Features
| FAB 550 - Dual (Asphalt & Wet Mix) | ||
| Operating Height - A | Mtr. | 2.50 |
| Shipping Height - B | Mtr. | 2.00 |
| 4 | Total Length | 6610 mm |
| Length - C | Mtr. | 6.50 |
| Operating Width - D | Mtr. | 3.20 |
| Shipping Width - E | Mtr. | 2.50 |
| Tread Width - F | Mtr. | 2.25 |
| Truck Dumping Clearance - G | Mtr. | 0.56 |
| Wheel Base - H | Mtr. | 2.60 |
| Tyres – Front (04nos) | Solid Tyres | size 22 x 16 x 6 |
| Tyres – Rear (04nos.) | Air Tyres | Size 10 x 20 |
| Turning Radius | Meters | 5.5 |
| Hopper Capacity | m³ | 4.10 |
| Engine Make | Ashok Leyland/Kirlosker | Turbo Charged or Equivalent |
| Engine Output | RPM | 128HP @ 2000 rpm |
| Screed | ||
| Basic Width | mtrs | 2.50 |
| Variable Extension | mtrs | 2.50 to 4.50 |
| Bolt on Extension (Max.) | mtrs | 5.75 |
| Crown | Percentage | -1 to 4.5 |
| Gradient Slope | Percentage | 10 |
| Screed Vibration | Per min | 0 - 3000 |
| Tamping Strokes (5 mm) | Per min | 0 - 1600 |
| Screed Heaters | 04nos. | Diesel Heaters ( LPG Heaters Optional ) |
| Sensor Type | Electronics Operation | Grade & Slope Control |
| Laying Capacity | Tph | 300 |
| Paving Thickness | mm | 10 - 200 |
| Paving Speed 1st gear | Meter/ min | 0 - 80 |
| Paving Speed 2st gear | Meter/ min | 0 - 40 |
| Travel Speed 1st gear | km / hr | 0 - 15 |
| Travel Speed 2nd gear | km / hr | 0 - 7.5 |
| Fuel Tank | Litres | 130 |
| Hydraulic Oil Tank | Litres | 185 |
| Wiring | Electrical Wiring | In line with international standardss |
Technical Specification
Technical Specification
| Sr. No. | Specification | Measurement |
|---|---|---|
| 1 | Operating Height | 3430 mm |
| 2 | Weight | 15240 kg |
| 3 | Shipping Height | 2520 mm |
| 4 | Total Length | 6610 mm |
| 5 | Operating Width | 3140 mm |
| 6 | Shipping Width | 2540 mm |
| 7 | Tyre Centre Line | 2080 mm |
| 8 | Truck DumpingClearance | 485 mm |
| 9 | Wheel Base | 2610 mm |
| 10 | Screed Type | FH4500 |
| 11 | Screed Basic Width | 2500 mm |
| 12 | Innite Variable Extension | 2500-4500 mm |
| 13 | Bolton Extension | 5750 mm (max) |
| 14 | Screed Weight [main] | 2890 mm |
| 15 | Bolton Extension Weight | 210 kg [625mm] |
| 16 | Crown | -1.0 to + 4.5 % |
| 17 | Gradient Slope | 10% gradient slope |
| 18 | Screed Vibration | 30-50 Hz |
| 19 | Tamping Stroke 5 mm | 18-27 Hz |
| 20 | Screed Plate | 320 x 12 [wear resistant] |
| 21 | Screed Heating | Diesel operated burner |
